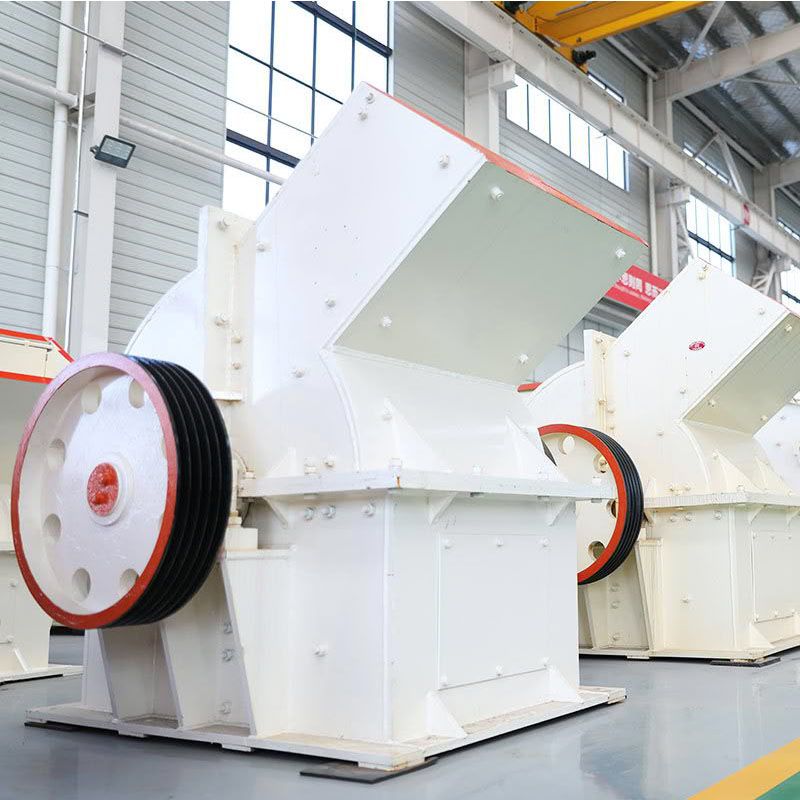

Jaw crushers, hammer crushers, roll crushers, and impact crushers for bulk material size reduction. Integrated crushing and conveying solutions for complete material handling.
| Types | Jaw Crusher (PE Series), Hammer Crusher (PC Series), Roll Crusher (2PG Series), Impact Crusher |
|---|---|
| Max Feed Size | Up to 1,200 mm (model-dependent) |
| Output Size | 5 – 150 mm adjustable |
| Capacity | 5 – 1,000 t/h (material and model-dependent) |
| Crushing Ratio | 4:1 to 20:1 (type-dependent) |
| Drive Power | 5.5 – 400 kW |
| Discharge Adjustment | Manual wedge, hydraulic, or shim adjustment |
| Wear Parts | Manganese steel (Mn13, Mn18); high-chrome alloy for hammers |
| Body Material | Welded steel plate construction with rib-reinforced design |
| Certification | ISO 9001; National High-Tech Enterprise; "Hubei Boutique" Certified |
Optimized crushing chamber geometry and kinematics deliver high reduction ratios in a single pass, reducing the need for multi-stage crushing circuits.
Quick and precise discharge gap adjustment via manual wedge, hydraulic, or shim mechanism to produce the exact output gradation required.
High manganese steel (Mn13/Mn18) jaw plates, hammer heads, and roll shells provide exceptional wear life in abrasive rock and mineral applications.
Hydraulic toggle or relief system protects the crusher from tramp metal and uncrushable objects, preventing costly damage and downtime.
Heavy-duty sealed bearings, sound-dampening design, and enclosed crushing chambers minimize noise and dust emissions for safer working environments.
Designed as part of complete material handling lines with compatible interfaces for our feeders, conveyors, and screening equipment.
Primary, secondary, and tertiary crushing of ores including iron, copper, gold, and bauxite in open-pit and underground operations.
Limestone, granite, basalt, and sandstone crushing for aggregate production in construction and infrastructure projects.
Limestone and clay crushing in cement raw material preparation. Clinker pre-crushing before finish grinding.
Coal crushing and sizing for power plants, coke ovens, and coal chemical processing facilities.
Recycling of construction and demolition waste. Crushing of gypsum, lime, and other building materials.
Size reduction of chemical raw materials, fertilizers, salt, and industrial minerals to required process specifications.
Tell us your feed material, required output size, and target capacity. Our engineering team will design the optimal crushing circuit within 24 hours.
