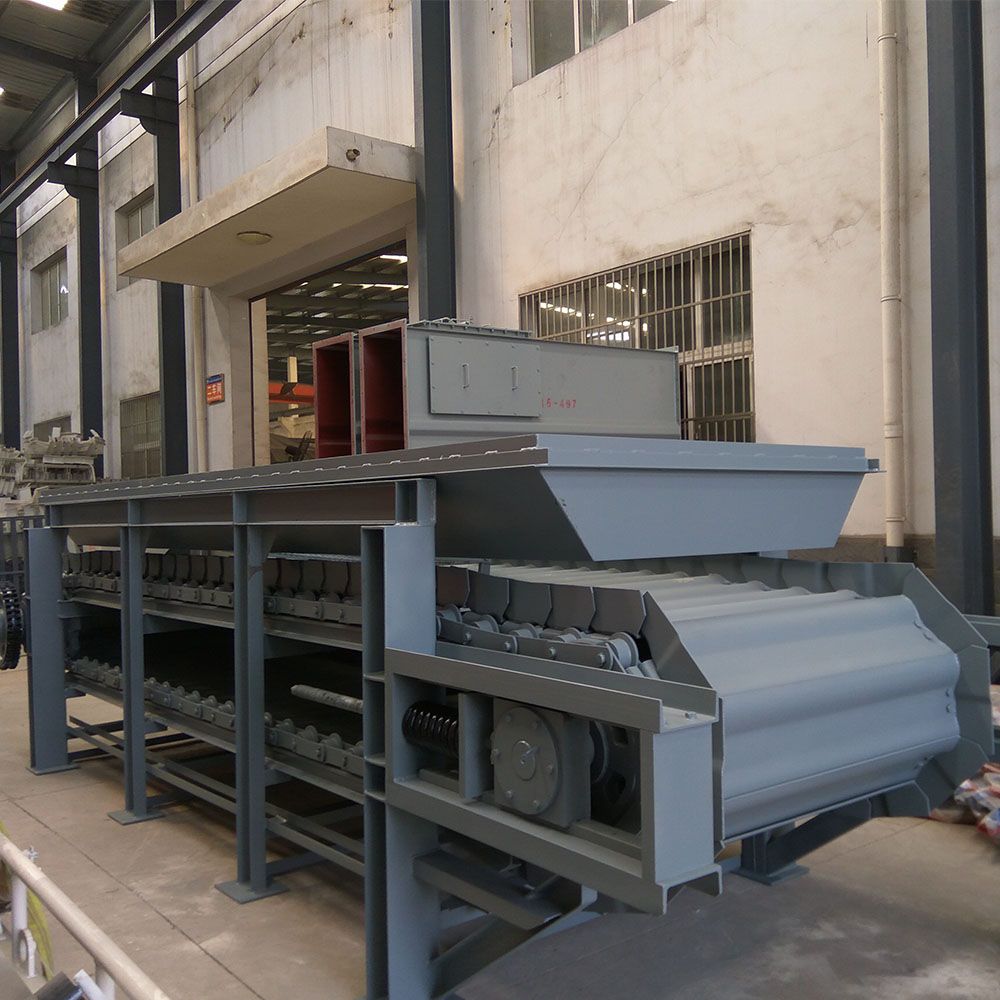

Heavy-duty apron/pan conveyors for transporting hot, heavy, abrasive, and large-lump bulk materials. BLT series using overlapping steel pans on heavy-duty roller chains for extreme industrial environments.
| Model Series | BLT (Heavy-Duty Apron Conveyor) |
|---|---|
| Pan Width | 400, 500, 630, 800, 1000, 1200, 1400, 1600, 2000, 2400 mm |
| Conveying Capacity | Up to 1,000 t/h (material-dependent) |
| Max Material Temperature | Up to 600°C (special heat-resistant steel available) |
| Max Inclination | Up to 35° (depending on material properties) |
| Chain Pitch | 160, 200, 250, 315, 400, 500, 630 mm |
| Pan Material | Carbon steel (standard); wear-resistant steel; heat-resistant alloy steel; stainless steel |
| Drive Type | Low-speed high-torque gear motor; hydraulic drive (optional) |
| Chain Type | Heavy-duty roller chain with hardened pins and bushings |
| Certification | ISO 9001; National High-Tech Enterprise; "Hubei Boutique" Certified |
Engineered to convey materials up to 600°C using heat-resistant alloy steel pans and high-temperature chain lubrication systems. Suitable for hot clinker, slag, and foundry applications.
Robust overlapping steel pan design absorbs impact from large lump materials and heavy loads. Reinforced chain and sprocket system rated for demanding 24/7 industrial operation.
Interlocking overlapping pan design with side skirts minimizes material leakage during inclined conveying. Enclosed return side captures any residual material.
Flat, corrugated, or deep-dish pan configurations available for different material characteristics. Optional impact bars and wear-resistant liners for extra protection.
Designed for slow, steady material transport with high starting torque. Variable frequency drive options for adjustable feed rates and soft start capability.
Reinforced structural steel frame with heavy-duty roller chains. Designed for decades of service in the toughest industrial environments with minimal structural fatigue.
Hot sand conveying in foundries, hot slag and scrap handling in steel plants. Withstands extreme temperature spikes and abrasive foundry materials.
MSW and RDF feeding to incinerator hoppers. Heavy-duty design handles irregular, bulky, and abrasive waste materials with high reliability.
Primary crusher discharge conveying for large lump ore and overburden. Impact-resistant design for direct dump from trucks or excavators.
Hot clinker conveying from cooler to storage. Heat-resistant pans withstand clinker temperatures up to 600°C with minimal thermal deformation.
Bottom ash and slag removal from boilers. Robust chain and pan design handles wet ash, clinkers, and pyrites with reliable performance.
Feeding systems for wood chips, bark, demolition waste, and recycled materials into processing equipment. Adjustable speed for controlled feed rates.
Tell us your material type, lump size, temperature, and capacity requirements. Our engineering team will design a robust apron conveyor tailored to your application within 24 hours.
